ESP32S2
Note
This demo is based on a 5MP camera
Hardware connection
Camera pin |
Development board pins |
---|---|
VCC |
3V3 |
GND |
GND |
SCK |
36 |
MISO |
37 |
MOSI |
35 |
CS |
7 |
full_featured

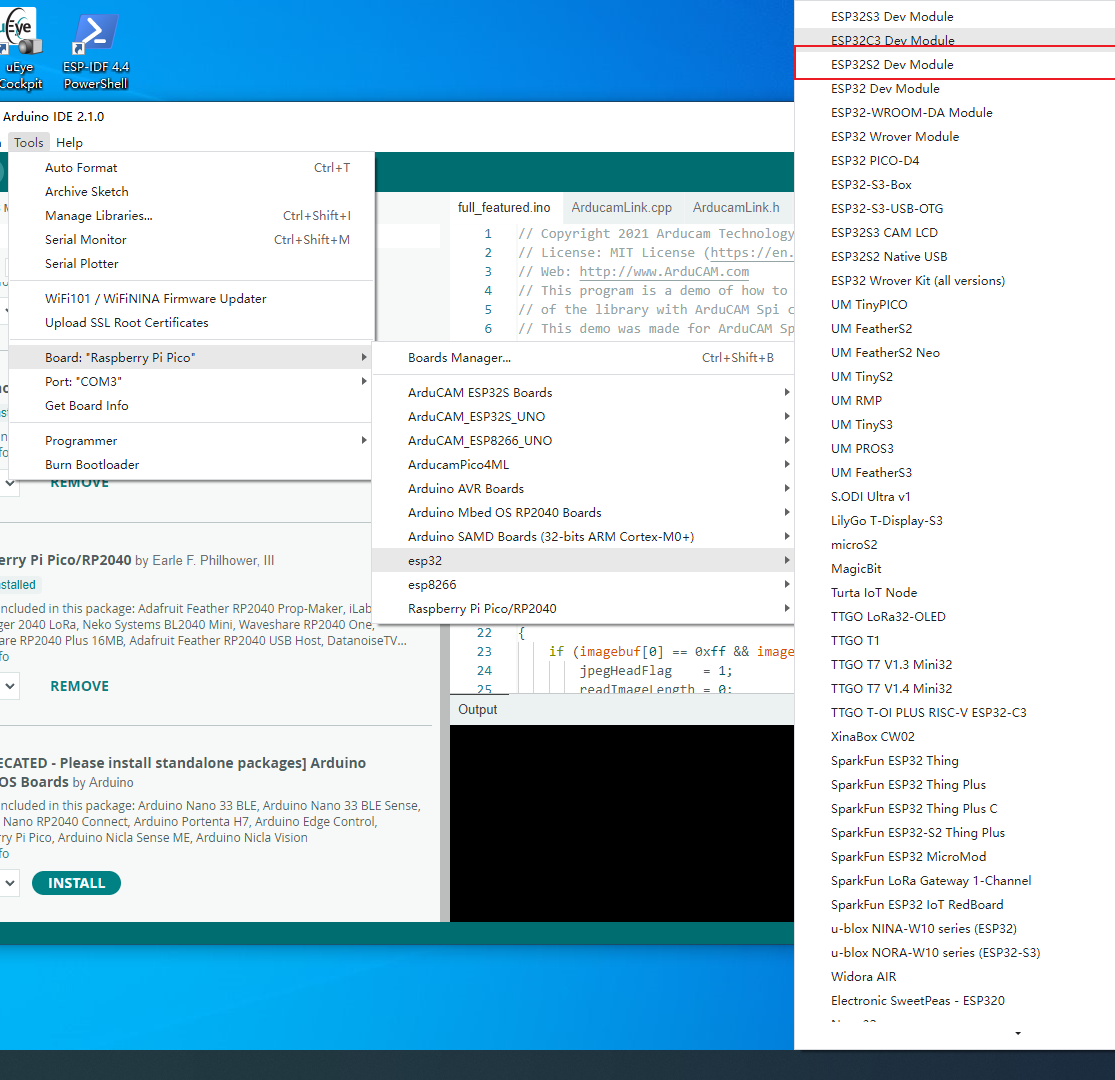

Select platform
![../../_images/selectPlatform4.png](../../_images/selectPlatform4.png)

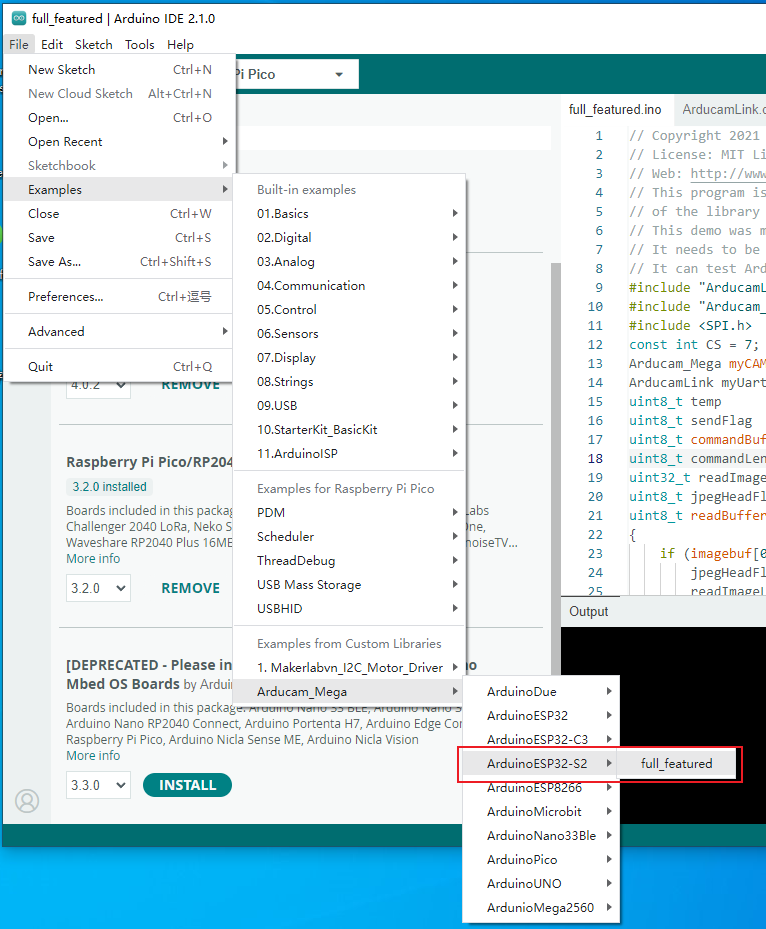

Select example
![../../_images/selectExample4.png](../../_images/selectExample4.png)
Download program
![../../_images/download3.png](../../_images/download3.png)
Effect demonstration
![../../_images/image.bmp](../../_images/image.bmp)
